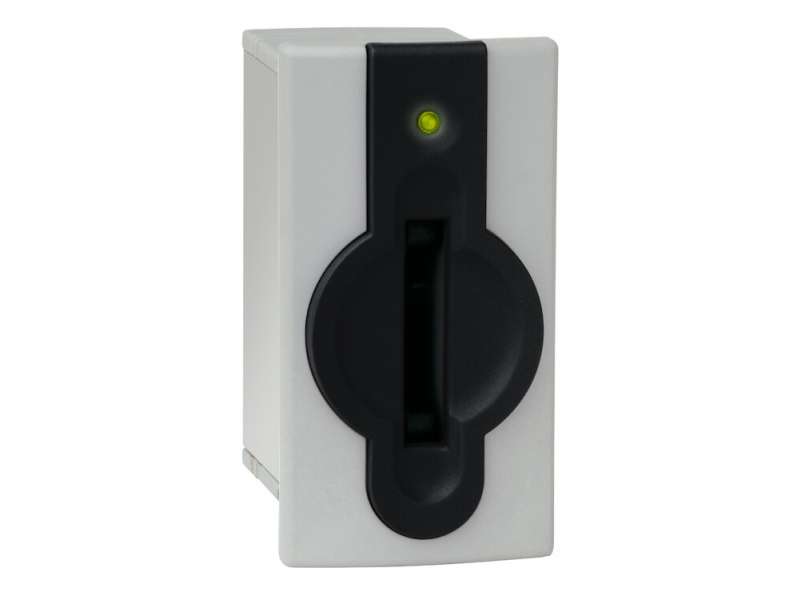

EUCHNER Electronic-Key adapter EKS Light compact (supports only operating state 0) ; 111230
Electronic-Key adapter EKS Light compact (supports only operating state 0) Electronic-Key adapter with 4-bit parallel interface Simple connection Read-only system...
Price on request
Electronic-Key adapter EKS Light compact (supports only operating state 0)
- Electronic-Key adapter with 4-bit parallel interface
- Simple connection
- Read-only system
- Electronic-Key adapter and evaluation electronics in one housing
- Reliable retention of the Electronic-Key, even if there is heavy vibration
- Internal evaluation of the data from the Electronic-Key
- Output of the access level via 4-bit parallel interface
- Only operating state 0
- Connection to PLC
Approvals
Mechanical values and environment
| Mounting cut-out | |
| according to DIN EN 61554 | 33x68 mm |
| Housing material | |
| Housing | PA6-GF30 gray/black |
| Ambient temperature | -20 ... 70 °C |
| Degree of protection | IP67 in installed state (only access side) |
| Mounting method | On the front |
Electrical connection ratings
| Connection cross-section | 0,14 ... 1,5 mm² |
| LED display | |
| Green | Operational |
| Yellow | Key in operating distance |
| Red | Fault |
| Power supply | |
| Operating voltage DC | 9 ... 24 ... 28 V DC |
| Current consumption | max.70 mA |
| Interface and signaling | |
| Switching voltage | UB-2 ... UB V |
| Switching current | 1 ... 10 ... 50 mA High signal |
Interface, bus
| Interface and signaling | |
| Data interface | 4-bit parallel plus strobe, binary coded via High/Low level |
-
50373
