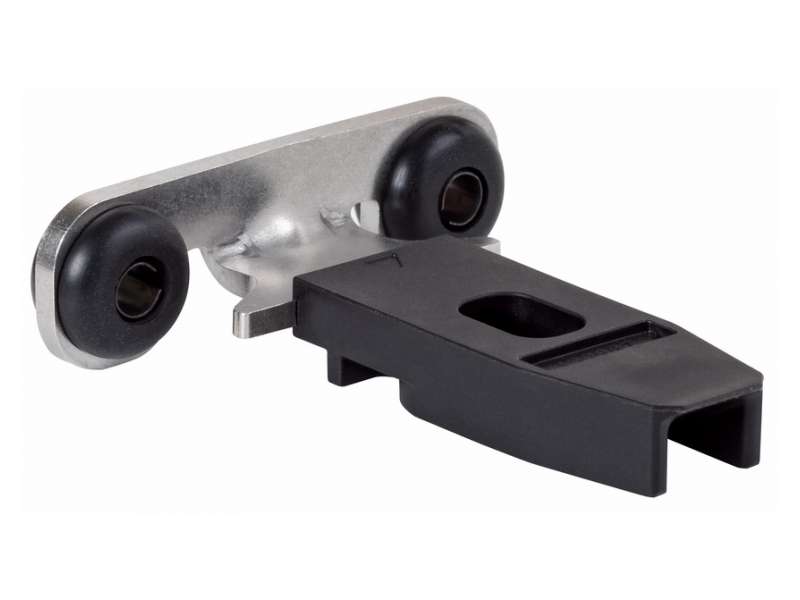

EUCHNER Bent actuator for safety switch CTP/CTA, BETAETIGER A-C-H-W-SST; 122667
Bent actuator for safety switch CTP/CTA, BETAETIGER A-C-H-W-SST; 122667...
Price on request
Bent actuator for safety switch CTP/CTA, BETAETIGER A-C-H-W-SST; 122667
Actuator bent at top
The angled actuator is used on sliding doors or hinged doors with door radii greater than 300 mm. Safety screws prevent unscrewing of the actuators.
The safety screws included can be inserted with a normal tool, but cannot be removed again.
Bent actuator for safety switch CTP/CTA
- Actuator bent at top
- Two safety screws included
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Mechanical life | 1 x 10⁶ |
| Overtravel | 5 mm |
| Degree of protection | IP67/IP69 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Bush | NBR |
| Encapsulation | fiber reinforced plastic, black |
| Mounting | Stainless steel |
| Locking force Fmax | 1500 N |
| Locking force FZh | 1100 N |
