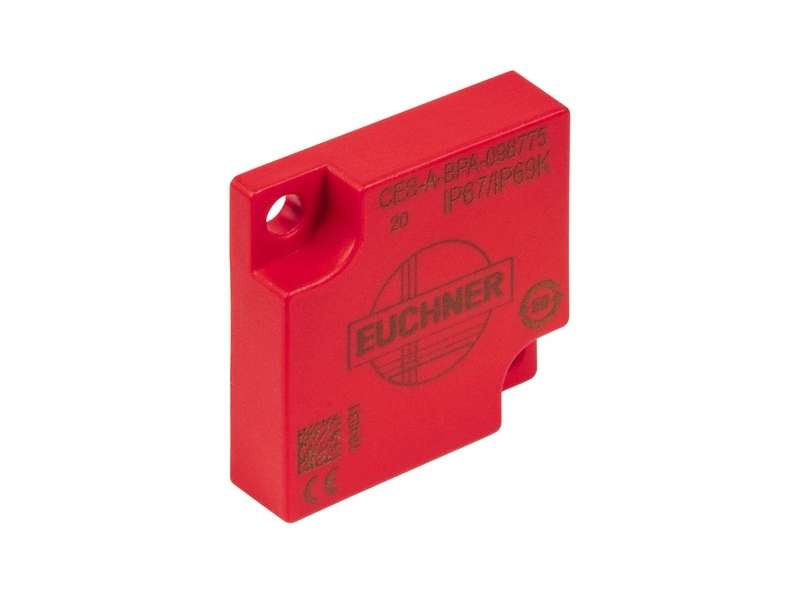

EUCHNER ACTUATOR CES-A-BPA-098775 (Order no. 098775)
ACTUATOR CES-A-BPA-098775 (Order no. 098775). Cube-shaped design 40 x 40 mm...
Price on request

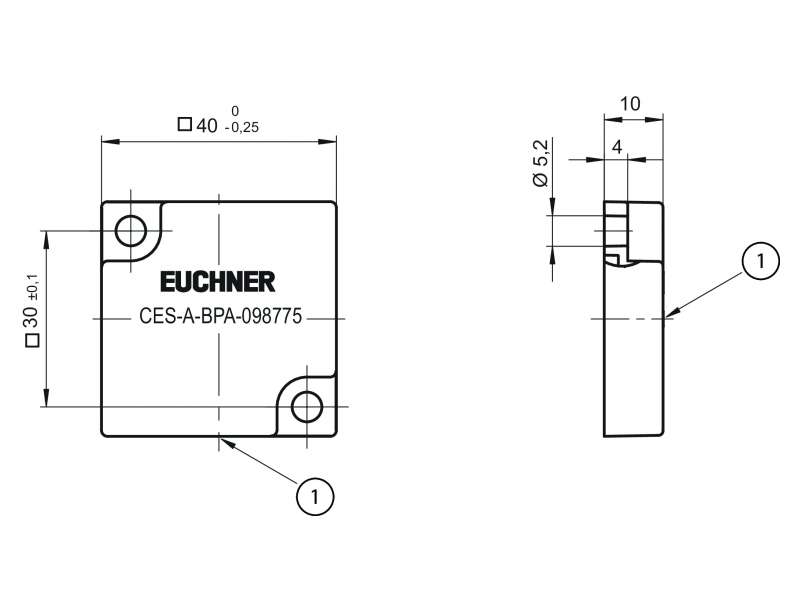

ACTUATOR CES-A-BPA-098775 (Order no. 098775). Cube-shaped design 40 x 40 mm
Approvals
Workspace
| Actuator distance s | |
| Minimum distance for side approach direction | min. 6 mm |
| Switch-on distance | |
| with center offset m=0 | 22 mm |
| Secured switch-off distance sar | |
| with center offset m=0 | max. 58 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 18 mm |
| Switching hysteresis | |
| with center offset m=0 | 1 ... 2 mm |
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Degree of protection | IP65/IP67/IP69/IP69K |
| Ambient temperature | -25 ... +70 °C |
| Material | |
| Housing | Plastic (PBT) |
Components included in the set
| Included accessories | 2x safety screws M5x10 |
