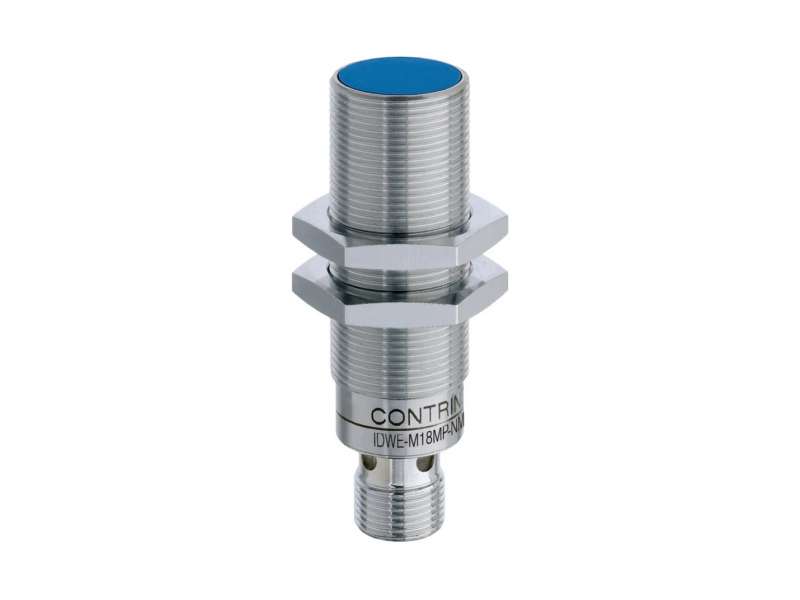

CONTRINEX DMS Smart 0...10 mm, IDWE-M18MP-NMS-A0; 330-020-481
DMS Smart 0...10 mm, IDWE-M18MP-NMS-A0; 330-020-481 M12 4-pin|Quasi-embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 63.5 mm|Chrome-plated brass...
VAT-exclusive price: 20.400,00 |
VAT-inclusive price: 24.480,00 |
DMS Smart 0...10 mm, IDWE-M18MP-NMS-A0; 330-020-481
M12 4-pin|Quasi-embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 63.5 mm|Chrome-plated brass
M12 4-pin|Quasi-embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 63.5 mm|Chrome-plated brass
| Operating range | 0...10 mm |
| Switching frequency max. | 125 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Repeatability | < 0.006 mm |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Resolution | 4 µm |
| Temperature range | -25...+70°C |
| Sensor Height | 63.5 mm |
| Mounting | Quasi-embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...11 mm |
-
IDWx-MxxMP-NMS-A0
