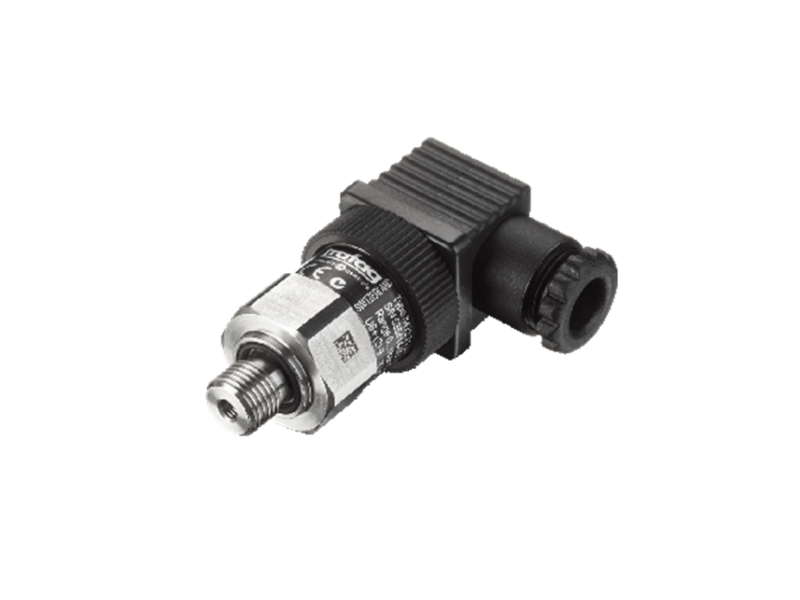

Trafag TP ECT 8472 0-10bar, 4-20mA, G1/4', EN 175301-803-A, EPDM; ECT 8472.78.5717.05.0000.0000.19.58.63
Trafag pressure transmitter 0-6bar, 4-20mA, G1/4'', EN 175301-803-A, EPDM; ECT 8472.78.5717.05.0000.0000.19.58.63...
VAT-exclusive price: 8.817,38 |
VAT-inclusive price: 10.580,85 |
ECT 8472 PRESSURE TRANSMITTER
PRESSURE TRANSMITTER CER.
PRESSURE RANGE 0...10 BAR
REL; ACC. 0,5%; Mat.1.4305; G1/4"M
PLUG EN175301-803-A (DIN43650A)
4...20MA 9...30V DC
CABLE SOCKET EN175301-803-A (DIN43650A)
O-RING EPDM
ASIC TX2; TYPE LABEL UID
Typecode: 8472 78 5717 05 0000 0000 19 58 63 T2
With the following configuration:
Specification H72324 (8472 ECT Standard)
Pressure unit bar
Pressure zero point 0,0000
Pressure end point 10,0000
Max. over pressure 20,0000
Measuring principle rel/abs Relative
Label-type Standard base black
Logo type label / packaging Trafag
Instruction manual Trafag
Type code T1 8472.78.5717.05.0000.0000.
Type code T2 19.58.63.T2
-
H72324at EN 8472 ECT Industrial Pressure Transmitter
-
H73324ab Instructions 8472 8473 8477 8478 ECT ECTN ECR Pressure Transmitter
