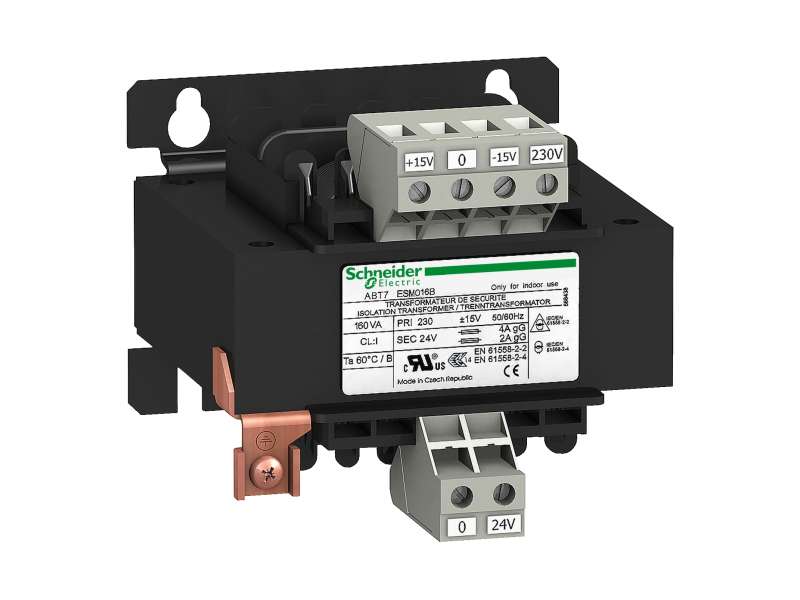

Schneider Electric Naponski transformator - 230 V - 1 x 24 V - 160 VA;ABT7ESM016B
Voltage transformer - 230 V - 1 x 24 V - 160 VA...
Out of stock
Voltage transformer - 230 V - 1 x 24 V - 160 VA
| range of product |
Modicon Economic
|
|
|---|---|---|
| product or component type |
Safety and isolation transformer
|
|
| rated power in VA |
160 VA
|
|
| input voltage |
230 V AC phase to phase, terminal(s): L1-L2
230 V AC single phase, terminal(s): N-L1 |
|
| output voltage |
24 V AC
|
|
| secondary winding |
Single
|
|
| protective cover |
Without
|
|
| ambient air temperature for operation |
-20…40 °C
|
| input voltage limits |
207...253 V
|
|
|---|---|---|
| network frequency limits |
47…63 Hz
|
|
| input voltage tolerance |
+/- 15 V
|
|
| efficiency |
87 %
|
|
| power dissipation in W |
23.9 W
|
|
| voltage variation at nominal load |
6.12 % at 230 V
|
|
| output sustained overvoltage |
0,075 (no load, hot state)
|
|
| maximum voltage drop at rated load |
7.42 %
|
|
| no load losses |
9.6 W
|
|
| short-circuit voltage |
9 %
|
|
| output protection type |
Against overload, protection technology: external
Against overvoltage, protection technology: external Against short-circuits, protection technology: external |
|
| connections - terminals |
For input connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11
For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 2 x 2.5...2 x 4 mm² AWG 14...AWG 11 |
|
| marking |
CE
|
|
| fixing mode |
By 4 screws diameter: 5 mm on vertical panel, operating position: vertical
By 4 screws diameter: 5 mm on horizontal panel with derating to 90 %, operating position: horizontal By clips (with mounting plate) on 35 mm symmetrical DIN rail By 4 screws diameter: 5 mm on vertical panel |
|
| operating altitude |
3000 m
|
|
| electrical insulation class |
Class B
|
|
| width |
97 mm
|
|
| height |
104 mm
|
|
| depth |
92 mm
|
|
| net weight |
2.72 kg
|
| product certifications |
EAC
|
|
|---|---|---|
| IP degree of protection |
IP20
|
|
| environmental characteristic |
EMC conforming to EN 62041
Safety conforming to EN 61558-1 Safety conforming to EN 61558-2-6 |
|
| ambient air temperature for storage |
-40…80 °C
|
|
| relative humidity |
0…95 % during operation
|
|
| overvoltage category |
Class I conforming to VDE 0106-1
|
|
| dielectric strength |
3200 V between input and ground
3200 V between output and ground 5100 V between input and output |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
3.04 kg
|
|
| Package 1 Height |
14.8 cm
|
|
| Package 1 width |
18.5 cm
|
|
| Package 1 Length |
25.5 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
22
|
-
Phaseo ABT7 ABL6 ABT7ESM016B
