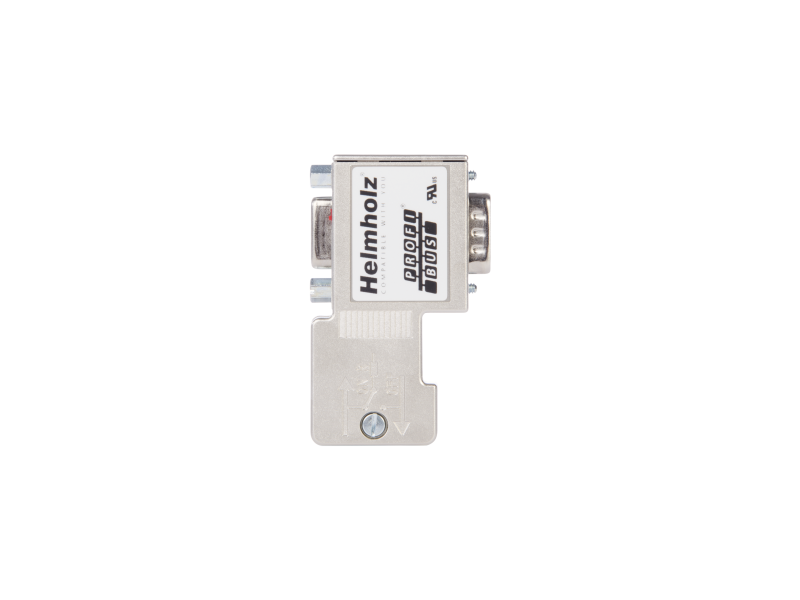

Helmholz PROFIBUS connector, 90°, screw terminal connector, with PG, incl. installation instructions
The PROFIBUS connector 90° is equipped with a proven and reliable screw terminal. It is quickly mounted and has integrated, connectable terminating resistors....
VAT-exclusive price: 5.134,06 |
VAT-inclusive price: 6.160,88 |
The PROFIBUS connector 90° is equipped with a proven and reliable screw terminal. It is quickly mounted and has integrated, connectable terminating resistors.
For improved EMC compatibility, the housing of the plug is metalized.
The PROFIBUS connector works in the extended ambient temperature range of -25 °C to +85 °C
Additional participants can be connected via the integrated PG interface.
- Metalized housing
- No parts that can be lost
- Integrated switchable terminating resistor
- 90° cable outlet
- Proven screw terminal
- The PROFIBUS connectors are also available in packs of 10 or 50
- The maximum ambient temperature for UL is +60 °C.
- Integrated PG interface
General information | ||
---|---|---|
Order number | 700-972-0BB12 | |
Article name | PROFIBUS connector, 90°, screw terminal, with PG | |
Scope of delivery | PROFIBUS connector, installation instructions | |
Dimensions (DxWxH) | 64 x 40 x 17 mm | |
Weight | Approx. 40 g | |
Cable outlet | Vertical cable outlet, suitable for FastConnect stripping tool | |
PROFIBUS interface | ||
Number | 1 | |
Transmission rate | max. 12 Mbps | |
Connection | SUB-D connector, 9-pin | |
Terminating resistor | Resistor combination integrated and switchable using slide switch | |
PG connection socket | yes, SUB-D, 9-pin | |
PROFIBUS bus cable | 60/75 °C copper cable up to 1.0 mm2 | |
Connector | ||
Connector type | terminal strips | |
Number | 4 | |
Maximum outside diameter | 8.0 mm | |
Voltage supply | + 4.75 … + 5.25 V DC (must come from the device) | |
Current draw | Max. 12.5 mA | |
Ambient conditions | ||
Ambient temperature | -25 °C … +85 °C (The maximum ambient temperature for UL is +60 °C.) | |
Transport and storage temperature | -25 °C … +85 °C | |
Relative air humidity | 70 % at +25 °C | |
Pollution degree | 2 | |
Protection rating | IP20 | |
Certifications | CE, UL | |
CE | ||
RoHS | Yes | |
REACH | Yes |
