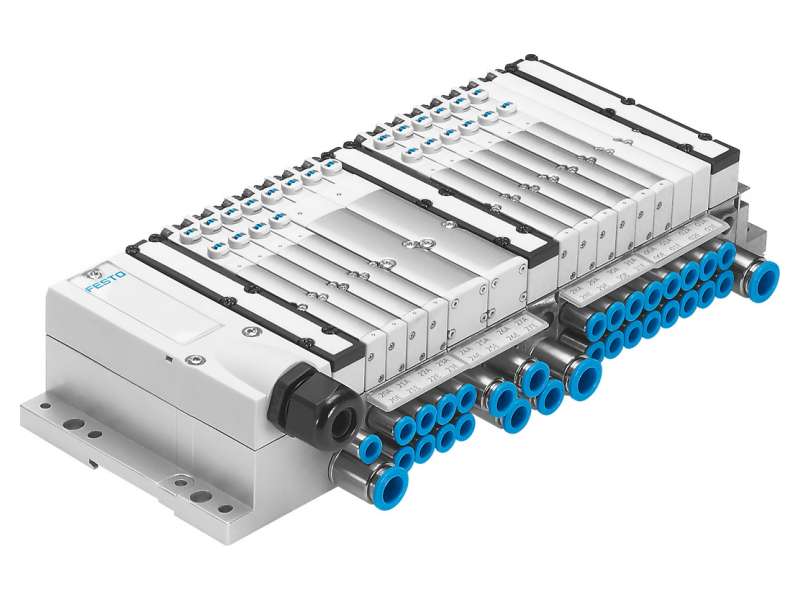

Festo Valve manifold MPA-MPM-VI ; 539105
Expandable flat valve manifold in the high-performance range. Easy to service and maintain thanks to detailed diagnostic function. Valve manifolds for universal...
Price on request
Expandable flat valve manifold in the high-performance range. Easy to service and maintain thanks to detailed diagnostic function.
- Valve manifolds for universal applications
- High-performance valves in a sturdy metal housing
- Metal linking
- Two valve sizes can be combined
- Excellent communication thanks to serial linking
- Fieldbus connection via CPX
- Max. 128 pneumatic valves
- Valve function
-
5/2, monostable
5/3, exhausted
2x3/2, open/closed, monostable
5/2, bistable
2x3/2, open, monostable
5/3, pressurized
3/2, open, monostable
2x3/2, closed, monostable
5/3, closed
2/2, closed, monostable
3/2, closed, monostable - KC characters
- KC EMC
- Valve size
-
10 mm
20 mm
14 mm - Max. standard nominal flow rate
-
360 l/min at 10 mm
700 l/min at 20 mm
550 l/min at 14 mm - Pneumatic working port
-
QS-6
QS-8
QS-3/16
M7
G1/8
QS-1/4
QS-5/16
QS-4 - Operating pressure
- -0.9 bar ... 10 bar
- Electrical actuation
- Multi-pin
- Max. no. of valve positions
- 24
- Max. no. of pressure zones
- 7
- Ambient temperature
- -5 °C ... 50 °C
- Degree of protection
- IP67
- Certification
-
c UL us - Recognized (OL)
RCM compliance mark - Type code
- MPA-MPM-VI
- Actuation type
- Electrical
- Valve terminal type
- 32
- Design
-
Piston gate valve
Poppet valve with return spring - Pilot air supply port
-
External
Internal - Valve manifold design
- Modular, pneumatic valve sizes can be mixed
- Signal status display
- LED
- Suitability for vacuum
- yes
- Nominal operating voltage DC
- 24 V
- Permissible voltage fluctuations
- +/- 25 %
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex nA IIC T4 X Gc
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Explosion prevention and protection
- Zone 2 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
-
As per EU EMC directive
as per EU explosion protection directive (ATEX) - Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Storage temperature
- -20 °C ... 40 °C
- Temperature of medium
- -5 °C ... 50 °C
- Relative air humidity
- Max. 90 % at 40 °C
- Note on materials
- RoHS-compliant
-
539105datasheet
