Festo Proximity sensor SMTO-1-PS-K-LED-24-C ; 151683
Attachable magneto-inductive cylinder switch in block design. Measuring principle: magneto-resistive LED switching status indication Cable length 2.5 m...
Price on request
Attachable magneto-inductive cylinder switch in block design.
- Measuring principle: magneto-resistive
- LED switching status indication
- Cable length 2.5 m
- Type code
- SMTO
- Design
- Block design
- Symbol
- 00991152
- Certification
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Note on materials
- Free of copper and PTFE
- Measuring principle
- Magneto-inductive
- Ambient temperature
- -25 °C ... 70 °C

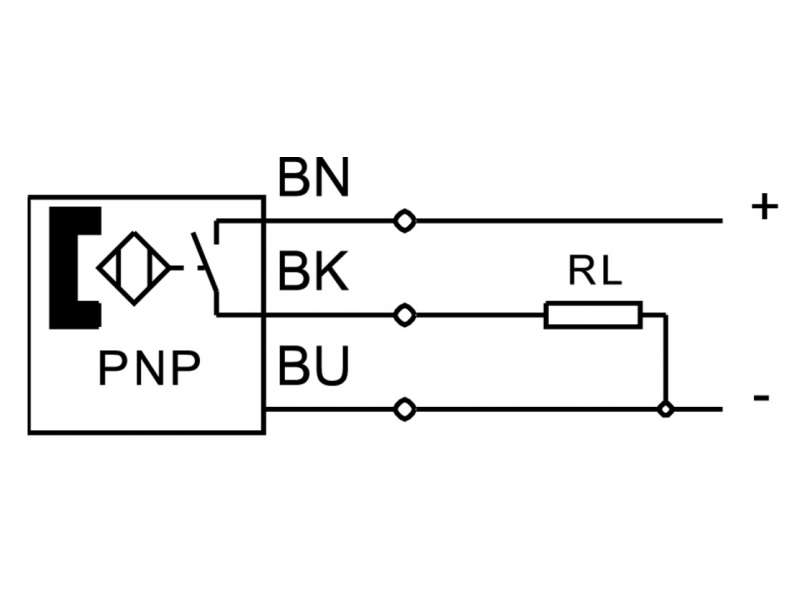

- Switching output
- PNP
- Switching element function
- N/O contact
- Reproducibility of switching value
- +/- 0.1 mm
- On time
- ≤ 1 ms
- Switch-off time
- ≤ 1 ms
- Max. output current
- 200 mA
- Max. switching capacity DC
- 6 W
- Voltage drop
- ≤ 3 V
- Residual current
- ≤ 0.01 mA
- Short-circuit protection
- yes
- Overload protection
- Available
- DC operating voltage range
- 10 V ... 30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
-
Cable
3-wire - Connection outlet orientation
- Longitudinal
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Material of cable sheath
- PVC
- Type of mounting
- With accessories
- Max. tightening torque
- 0.3 Nm
- Product weight
- 85 g
- Housing material
-
Die-cast zinc
PET - Switching status indication
- LED yellow
- Ambient temperature with flexible cable installation
- -5 °C ... 70 °C
- Degree of protection
- IP67
-
SMX-1 ENUS
