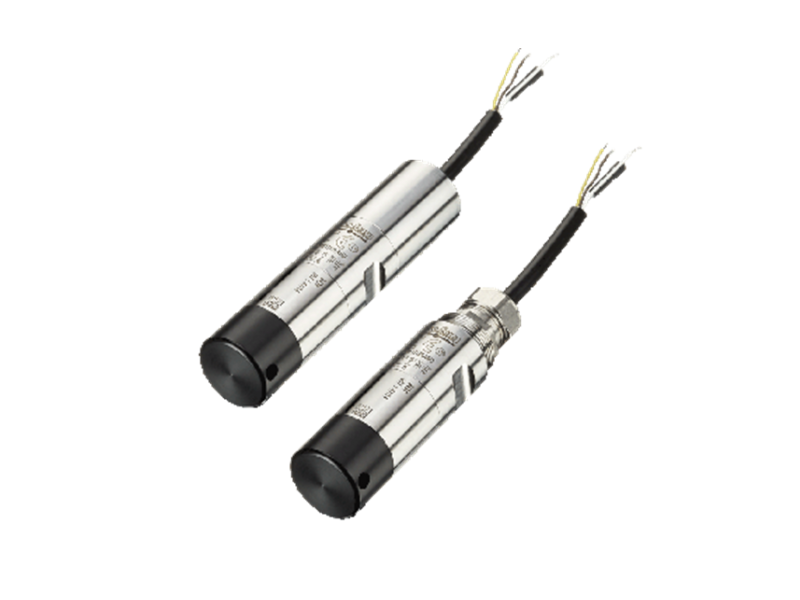

8439 SUBMERSIBLE TRANSMITTER

LEVEL TRANSMITTER ECL

PRESSURE RANGE 0...0,6 BAR

RELATIV; MAT AISI316L STANDARD; M22X1 A

CABLE PUR, 15m

4...20mA; 24(9...32)VDC

O-RING FKM / FPM / VITON

Typecode: 8439 70 2358 23 0000 0000 19 61

With the following configuration:

Specification H72336 (8439 ECL Standard)

Pressure unit bar

Pressure zero point 0,0000

Pressure end point 0,6000

Max. over pressure 1,2000

Measuring principle rel/abs Relative

Label-type Laser engraved

Logo type lable / packaging Trafag

Instruction manual Trafag

Type code T1 8439.70.2358.23.0000.0000.

Type code T2 19.61

Cable length 15,000 m
