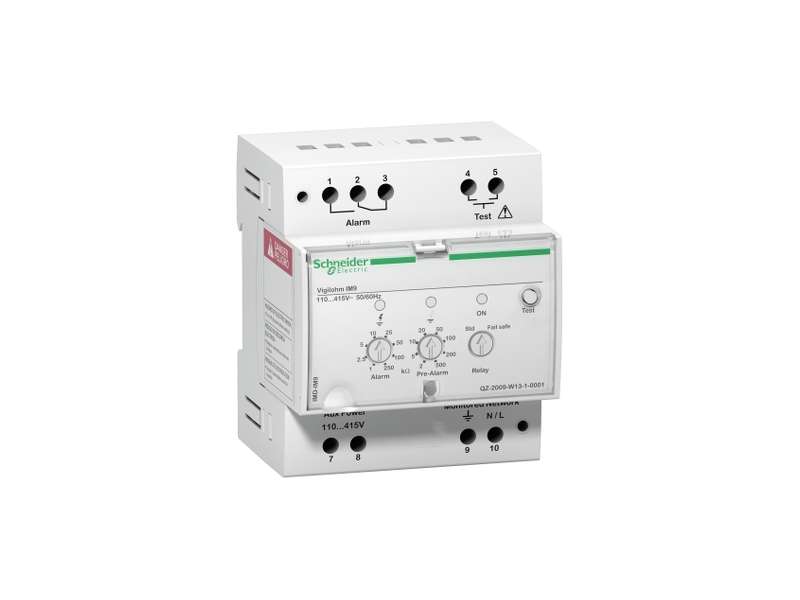

VIGILOHM IM9 110 - 415 VAC
| range | Vigilohm |
|---|---|
| device short name | IM9 |
| product or component type | Insulation monitoring device |
| device application |
Marine application Standard environment application |
| electrical circuit type | Small and not disturbed network |
| earthing system | IT |
| network rated voltage |
0…600 V - AC at 45...440 Hz (device connected to neutral) 0…480 V - AC at 45...440 Hz (device connected to phase) |
|---|---|
| type of measurement | Network insulation resistance |
| threshold setting |
Pre-alarm: 2...500 kOhm Alarm: 1...250 kOhm |
| response time | <= 7 s |
| auxiliary supply voltage |
110...415 V AC 45...440 Hz +/- 15 % 125...250 V DC +/- 15 % |
| power consumption in VA | 7 VA |
| measurement current | 0…70 µA |
| internal impedance | 230 kOhm - AC at 45...440 Hz |
| test function |
Remote test Local |
| output contact | 1 C/O standard or fail-safe |
| breaking capacity |
250 V - AC at 6 A 12...24 V - DC at 6 A |
| communication port protocol | - |
| mounting mode |
Clip-on Flush-mounted |
| mounting support |
DIN rail Panel |
| mounting position |
Horizontal Vertical |
| connections - terminals | Tunnel type terminals0.2…2.5 mm² |
| material | Thermoplastic |
| net weight | 0.2 kg |
| height | 90 mm |
| width | 71 mm |
| depth | 67.5 mm |
| IP degree of protection |
Case: IP20 Front face: IP40 |
|---|---|
| environmental characteristic |
Exposure to damp heat not in service conforming to IEC 60068-2-30 Exposure to damp heat in service conforming to IEC 60068-2-56 Salt mist conforming to IEC 60068-2-52 |
| type of installation | Indoor |
| standards |
IEC 61557-8 IEC 60664-1 |
| product certifications |
EAC CE BV RMRS DNV |
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 223.0 g |
| Package 1 Height | 8 cm |
| Package 1 width | 8.4 cm |
| Package 1 Length | 9.4 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Weight | 8.649 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Package 3 Height | 30 cm |
| Warranty | 18 months |
|---|
