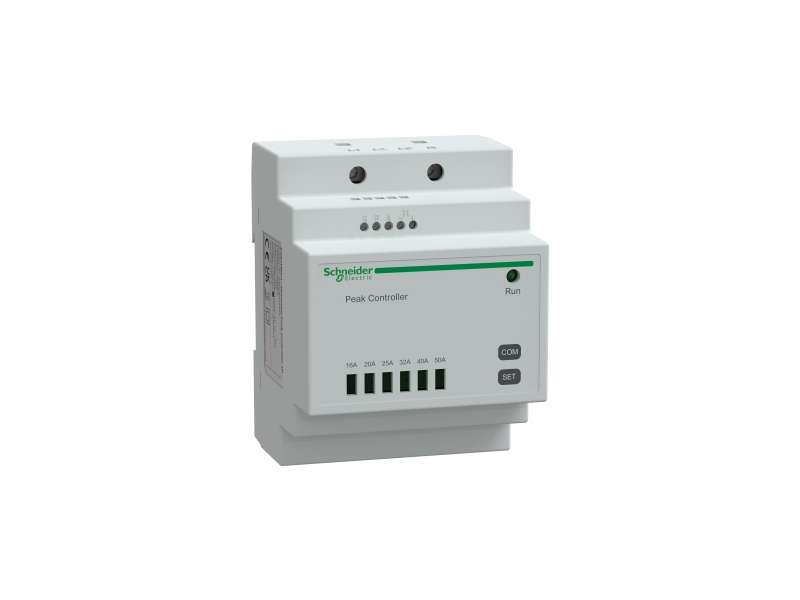

Schneider Electric Load-shedder, EVlink Home, 1P, maximum current allowed to charging station manually setting from 16A to 50A; EVA1HPC1
Load-shedder, EVlink Home, 1P, maximum current allowed to charging station manually setting from 16A to 50A...
VAT-exclusive price: 21.240,00 |
VAT-inclusive price: 25.488,00 |
Load-shedder, EVlink Home, 1P, maximum current allowed to charging station manually setting from 16A to 50A
| Range | EVlink |
|---|---|
| Product or component type | Load-shedder |
| Material | Plastic |
| range compatibility | EVlink (EVlink Home) |
|---|---|
| Condition of use | Indoor |
| Mounting support | 35 mm DIN rail |
| Setting of maximum current provided to charging station | Manual |
| Possible maximum current provided to charging station |
16 A 20 A 25 A 32 A 40 A 50 A |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz +/- 10 % |
| Power consumption in W | 4 W |
| connectivity to devices | PLC |
| local signalling |
1 green LED, function: control process 1 red LED, function: fault indication 1 green LED, function: embedded communication status |
| standards |
EN 61010-1:2010 EN 61326-1:2013 |
| Quantity per set | Set of 1 |
| Height | 70 mm |
| Width | 93 mm |
| Depth | 69 mm |
| Net weight | 196 g |
| colour | White |
| Operating altitude | 0...2000 m |
|---|---|
| Ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % |
| Overvoltage category | III |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.200 cm |
| Package 1 Width | 10.100 cm |
| Package 1 Length | 17.600 cm |
| Package 1 Weight | 504.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.540 kg |
| Range | EVlink |
|---|---|
| Product or component type | Load-shedder |
| Material | Plastic |
| range compatibility | EVlink (EVlink Home) |
|---|---|
| Condition of use | Indoor |
| Mounting support | 35 mm DIN rail |
| Setting of maximum current provided to charging station | Manual |
| Possible maximum current provided to charging station |
16 A 20 A 25 A 32 A 40 A 50 A |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz +/- 10 % |
| Power consumption in W | 4 W |
| connectivity to devices | PLC |
| local signalling |
1 green LED, function: control process 1 red LED, function: fault indication 1 green LED, function: embedded communication status |
| standards |
EN 61010-1:2010 EN 61326-1:2013 |
| Quantity per set | Set of 1 |
| Height | 70 mm |
| Width | 93 mm |
| Depth | 69 mm |
| Net weight | 196 g |
| colour | White |
| Operating altitude | 0...2000 m |
|---|---|
| Ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % |
| Overvoltage category | III |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.200 cm |
| Package 1 Width | 10.100 cm |
| Package 1 Length | 17.600 cm |
| Package 1 Weight | 504.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.540 kg |
