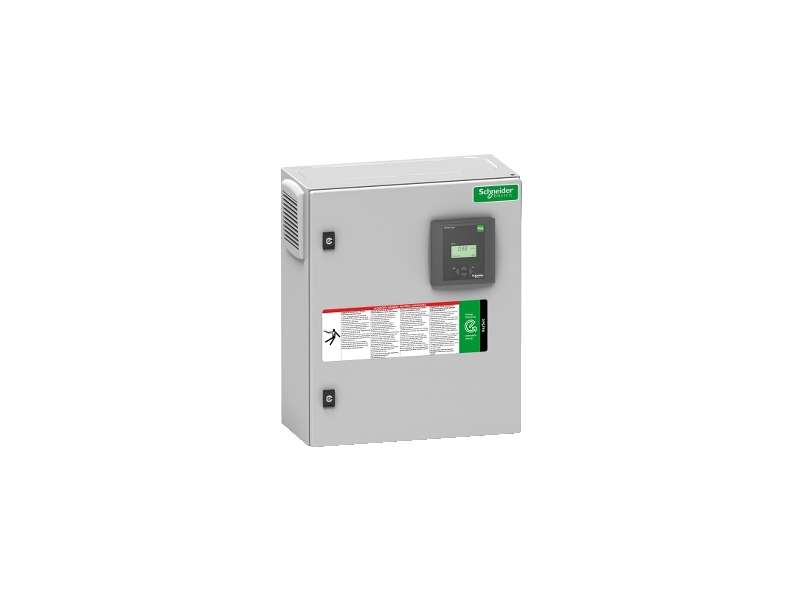

Schneider Electric Capacitor Bank VarSet Easy 45K Auto;VLVAW0L045A40B

Capacitor Bank VarSet Easy 45K Auto...

Brand: Schneider Electric
Product Code: VLVAW0L045A40B
Availability: Check availability

Price on request

Description
Specification

Capacitor Bank VarSet Easy 45K Auto

Main
network rated voltage	400 V AC 50 Hz 415 V AC 50 Hz
reactive power rating	45 kvar
operating mode	Automatic
range	VarSet
device short name	VarSet automatic
product or component type	Capacitor bank

Complementary
network pollution level	No polluted
[Gh/Sn] harmonic pollution rate	0…15 %
[THDU] total harmonic distorsion of voltage	0…3 %
power per step	7.5 kvar
step composition	7.5 + 15 + 22.5
location of connection	Top
controller type	Varplus Logic VPL6 Modbus
capacitor technology	EasyCan
poles description	3P
capacitance tolerance	- 5 % to 10 %
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	6 kV
maximum permissible voltage	1.1 x Un (8 hours over 24 hours) conforming to IEC 60831
[Imp] maximum permanent current	Battery: 1.36 x In at 400 V conforming to IEC 61439-2 Battery: 1.19 x In at 415 V conforming to IEC 61439-2 Capacitor: 1.5 x In at 480 V conforming to IEC 60831
main incomer protection	Without protection
[Icw] rated short-time withstand current	30 kA at 1 s (Icw)
step protection type	Overload: harmonic control from VarPlus Logic Short-circuit: upstream protection
accessibility for operation	Front
colour	Grey (RAL 7035)
maximum weight	57 kg
height	650 mm
width	500 mm
depth	250 mm
provided equipment	Auxiliary transformer
function available	Alarm contact GenSet shedding contact

Environment
standards	IEC 61439-1 IEC 61921 IEC 61439-2
product certifications	CE ASEFA EAC
mounting location	Indoor
IP degree of protection	Environment: IP31
IK degree of protection	IK10
relative humidity	0…95 %
operating altitude	<= 2000 m
ambient air temperature for operation	-5…45 °C
average ambient air temperature for operation	35 °C (annual) 45 °C (over 24 hours)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	27.0 kg
Package 1 Height	77.0 cm
Package 1 Width	60.0 cm
Package 1 Length	80.0 cm
Unit Type of Package 2	P06
Number of Units in Package 2	1
Package 2 Weight	35.5 kg
Package 2 Height	50.0 cm
Package 2 Width	80.0 cm
Package 2 Length	60.0 cm
