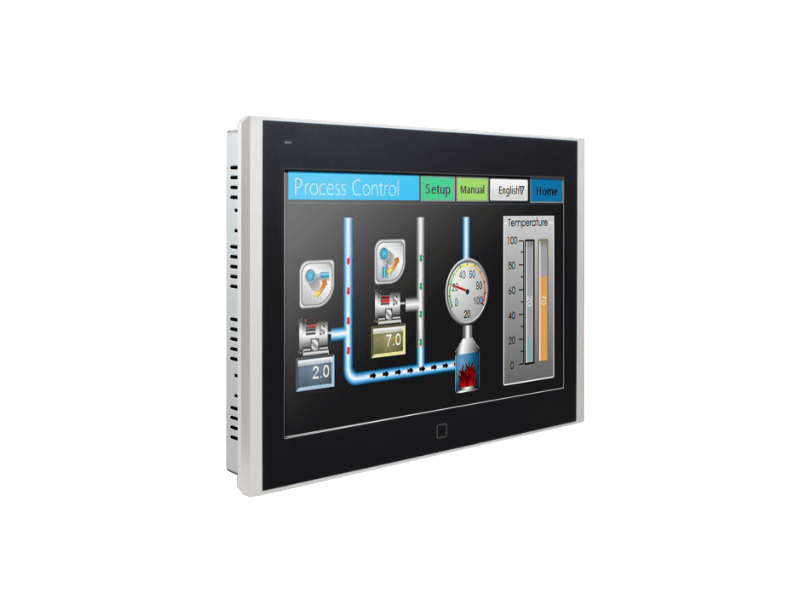

Novakon S15 Touch Screen HMI; S15F-N
S15 Touch Screen HMI - 15.6" TFT, 1366x768, Resistive Touch, ARM Cortex A9 Dual-Lite 1GHz...
Out of stock
S15 Touch Screen HMI - 15.6" TFT, 1366x768, Resistive Touch, ARM Cortex A9 Dual-Lite 1GHz
SPECIFICATIONS
| Model | S15 |
|---|---|
| Type | S15F-N |
| Display type | 15.6" TFT |
| Resolution | 1366 x 768 |
| Display area | 344.2 mm x 193.5 mm |
| Color depth | 16.7M |
| Backlight type | LED |
| Brightness | 500 cd/m² |
| Backlight lifetime | 50,000 hours |
| Viewing angle (H°/V°) | 160/160 |
| Contrast | 600:1 |
| Dimming | 20 levels |
| Touch panel | 5-wire resistive type |
| CPU | ARM Cortex-A9 (1GHz Dual-Lite) |
| Flash memory | 4G eMMC |
| DRAM | 1G Bytes |
| FRAM (non-volatile) | - |
| RTC | Yes |
| COM1 | RS232/422/485 |
| COM2 | RS232/422/485 |
| COM3 | RS232/485 or CAN bus (option) |
| Ethernet | 1 x 10/100/1000 Mbit |
| USB | 1 x Host, 1 x Device |
| Memory card | SD card |
| Power supply voltage | 19.2 ~ 28.8V Isolated Power |
| Power consumption | 28W |
| Operation temperature | 0 ~ 50°C |
| Storage temperature | -20 ~ 60°C |
| Humidity | 10% ~ 90% (non-condensing) @ 40°C |
| Construction | Aluminum front bezel and steel chassis |
| Waterproof (Front) | IP65 |
| Mounting | Panel Mount, VESA 100 x 100 |
| Dimension | 408.8(W) mm x 260.92(H) mm x 50.6(D) mm |
| Cut-out | 395.5(W) mm x 247.62(H) mm |
| Weight (Net) | 5.8 Kgs |
| Battery | CR2032 Replaceable |
| ESD Protection | Level 4 (Contact Discharge 8KV, Air-Gap Discharge 15KV), Class A |
| Certification | CE/FCC (EN 61000-6-4, EN 61000-6-2) |
| Accessories | Wi-Fi USB Dongle (802.11b/g/n) & Wi-Fi Antenna RP-SMA M-F Connector (Option) |
| System Support | Linux Kernel 4.1.15 / Android 6.0.1 |
| Remark | Specifications are subject to change without prior notice |
-
S15 Datasheet
