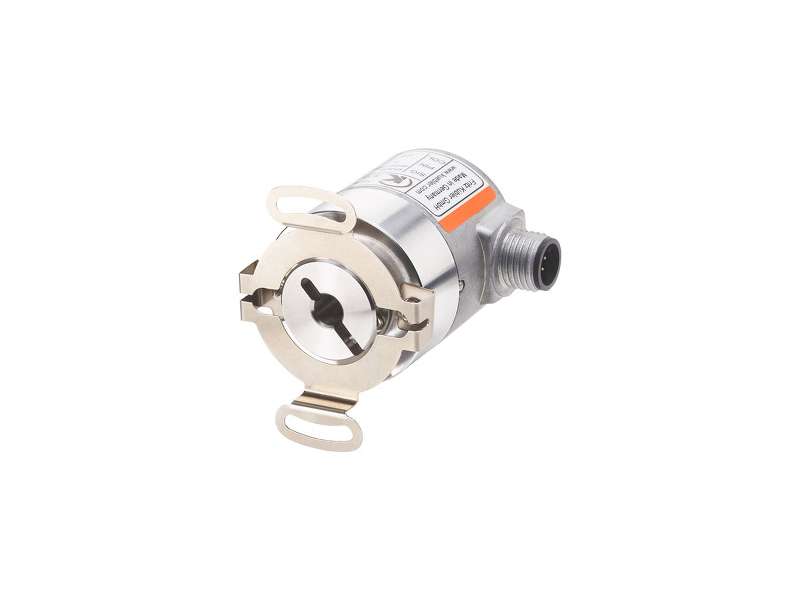

Kuebler Sendix 3671- Kompaktni enkoder ; 8.3671.XXXX.XXXX
Suitable for the toughest environments. Encoders with E1 approval. The absolute encoders Singleturn Sendix 3651 / 3671 with analog interface and magnetic sensors...
Suitable for the toughest environments. Encoders with E1 approval.
The absolute encoders Singleturn Sendix 3651 / 3671 with analog interface and magnetic sensors are particularly flexible due to their versatile interfaces and measuring ranges. A green and red LED as a reference point and error display facilitate both installation and error diagnosis. Protected to IP69k, shock-resistant and resistant to extreme temperature fluctuations, the Sendix are suitable for even the most demanding outdoor applications. These encoders are e1 approved by the Federal Motor Transport Authority (KBA).
- Contactless measuring system for a wear-free and durable application.
- Stable die-cast housing and protection up to IP69k for particular leak resistance.
- High shock and vibration resistance for particular resilience.
- Outer diameter of only 36 mm.
- The hollow shaft version accommodates a blind hollow shaft of up to 10 mm, which can be fastened individually - via torque brackets or stator coupling.
- 360° resolved into 4096 different positions.
- For use in 12 V or 24 V automotive wiring systems.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 10 mm hollow shaft, blind hole 1/4 " hollow shaft, blind hole |
| Flange type |
Ø 36.00 mm Ø 46.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP67 IP69k |
| Connection types |
Axial cable Radial cable M12 connector axial M12 connector radial |
| Max. rotational speed | 6.000 min-1 |
| Weight | 200 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. | 12 bits singleturn |
| Supply voltage |
10...30 V DC 15...30 V DC |
| Interfaces | Analog 0–10 V |
-
3651-3671 en
