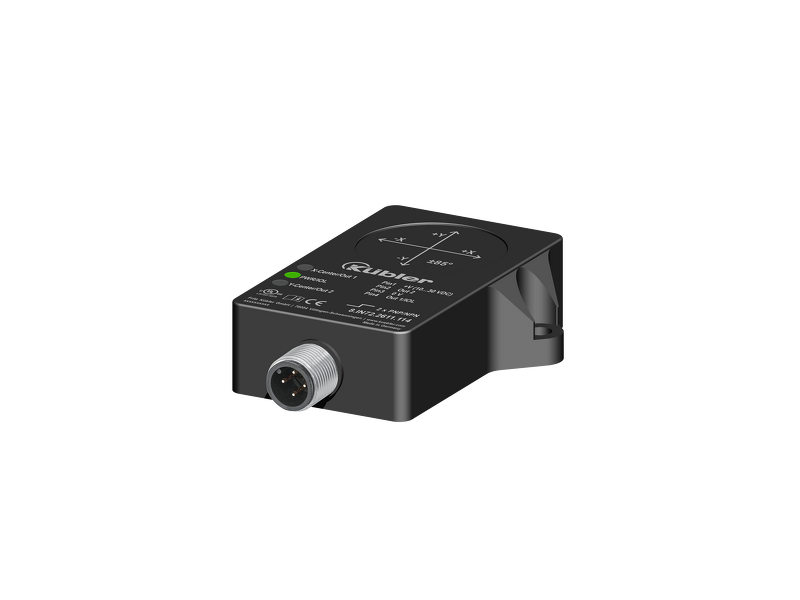

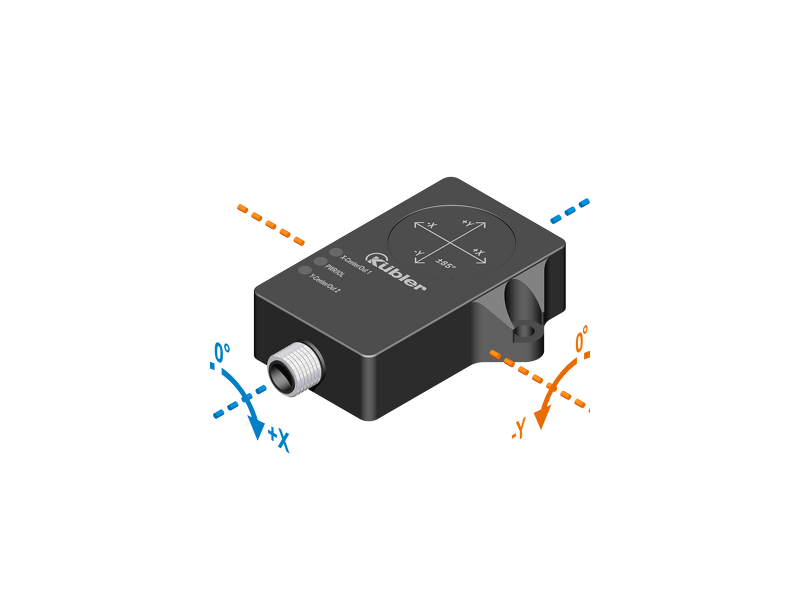

General data 2-axis measurement
Measuring range (max.) -85 ... +85°
Resolution 0.01°
Repeat accuracy ≤ 0.06 % v. E.
Temperature drift ≤ ±0.012 %/K
Linearity deviation ≤ ±0.15%
Accuracy (at 25°C) ≤ ±0.1°
depending on the measuring range
Mechanical characteristics
Electrical connection M12 connectors, 4-pin
Weight 89 g [3.14 oz]
Protection acc. to EN 60529 IP68 / IP69k
Working temperature range -40 °C ... +85 °C [-40 °F ... +185 °F]
Material housing Plastic, polyetherimide
Vibration resistance (EN 60068-2-6) 20 g; 5 h/axis; 3 axes
Shock resistance (EN 60068-2-27) 150 g; 4 ms 1/2 sine
MTTF 548 years
Dimensions 71.6 x 62.6 x 20 mm [2.82 x 2.46 x 0.79“]
Electrical characteristics
Supply voltage 10 ... 30 V DC
Residual ripple ≤ 10 % Uss
DC rated operational current ≤ 200 mA
Isolation test voltage ≤ 0.5 kV
Wire breakage /
Reverse polarity protection
yes
Current consumption max. 50 mA
Switching outputs
Output function NO/NC, PNP/NPN
