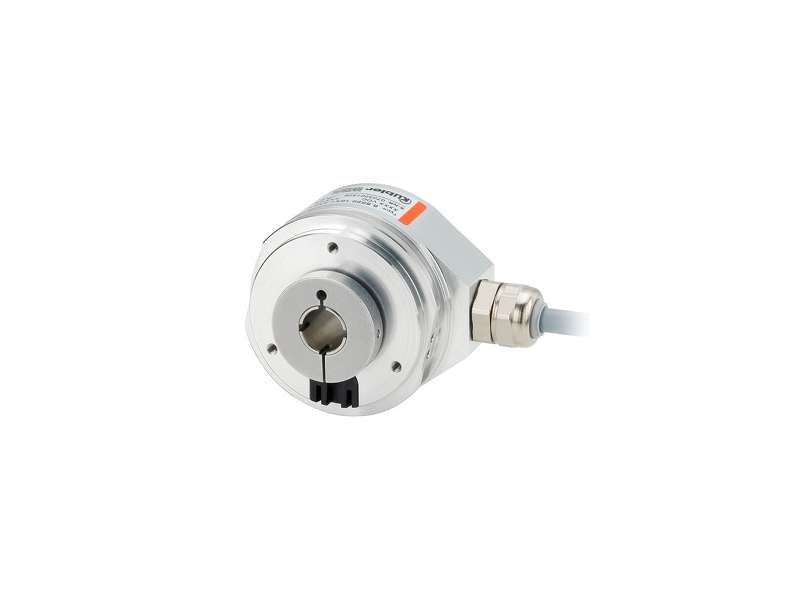

Kuebler 5823-Standardni enkoder za visoke temperature ; 8.5823.XXXX.XXXX
High temperature up to max. 110°C The incremental encoders of the high temperature series 5803 / 5823 can be used up to max. 110°C. The high heat resistance...
Price on request
High temperature up to max. 110°C
The incremental encoders of the high temperature series 5803 / 5823 can be used up to max. 110°C. The high heat resistance and high speed make these encoders the ideal solution for all applications in an environment of very high temperatures.
Powerful
- Suitable for temperatures up to max. 110°C.
- High resolution with up to 5000 pulses per revolution.
- Maximum speed of 12000 revolutions per minute.
- Different connection types for different applications.
- Shaft and hollow shaft variants
- With push-pull or RS422 interface.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through |
| Flange type |
Ø 58.00 mm Ø 65.00 mm |
| Working temperature | -20 °C ... +110 °C |
| Protection level |
IP40 IP66 |
| Connection types |
Radial cable M23 connector radial |
| Max. rotational speed | 12.000 min-1 |
| Weight | 400 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 5.000 ppr incremental |
| Supply voltage |
5 V DC 10...30 V DC |
| Interfaces |
Push-pull TTL / RS422 |
-
5803-5823 en
