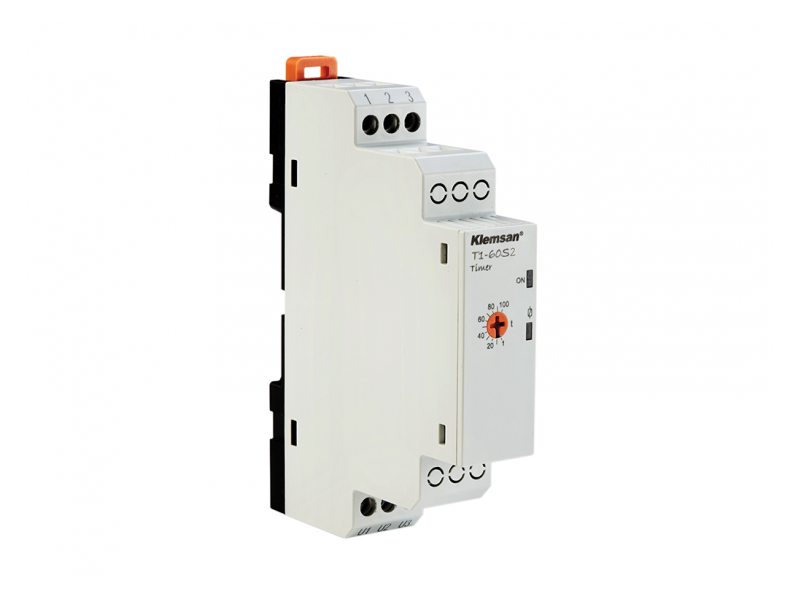

Klemsan On delay timer T1-60S2 ; 270352
Time relay, T series, manufactured by KLEMSAN. On delay. Time delay interval adjustable in the range 1-60s. This component has a single relay output, with a maximum...
Out of stock
Time relay, T series, manufactured by KLEMSAN. On delay. Time delay interval adjustable in the range 1-60s. This component has a single relay output, with a maximum switching AC current of 10A at 250V and a maximum switching direct current of 5A at 30V. The time relay can be supplied with both DC and AC 24-300V AC / DC voltage and is made in IP20 protection , intended for mounting in a DIN rail electrical cabinet. Long service life.
More in technical specification and documentation.
More in technical specification and documentation.
| General | --- | ||
| Order Number | 270352 | ||
| Casing Width (mm) | 17,5 | ||
| Connections | Screw terminal | ||
| Functions | ND | ||
| Type of Output | Relay | ||
| Adjustment of Timing-1 & Timing-2 | --- | ||
| Lux Adjustment Rate | --- | ||
| Sensitivity Adjusement Rate | --- | ||
| Supply Frequency | 35-70 Hz | ||
| Trigger Input Voltage | --- | ||
| Recovery Time | Max. 100msec | ||
| Protection Class | --- | ||
| Weight (g) | 66 | ||
| Mounting Type | --- | ||

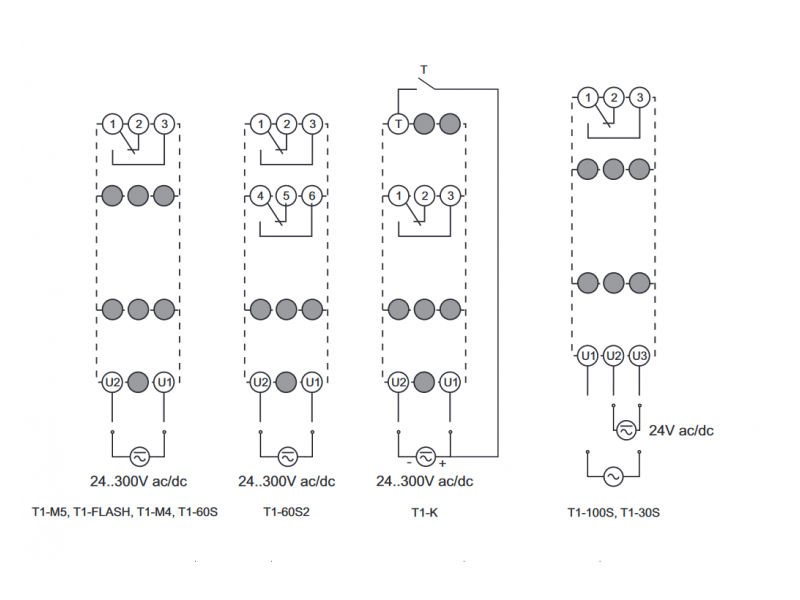

| Schematics | --- | ||

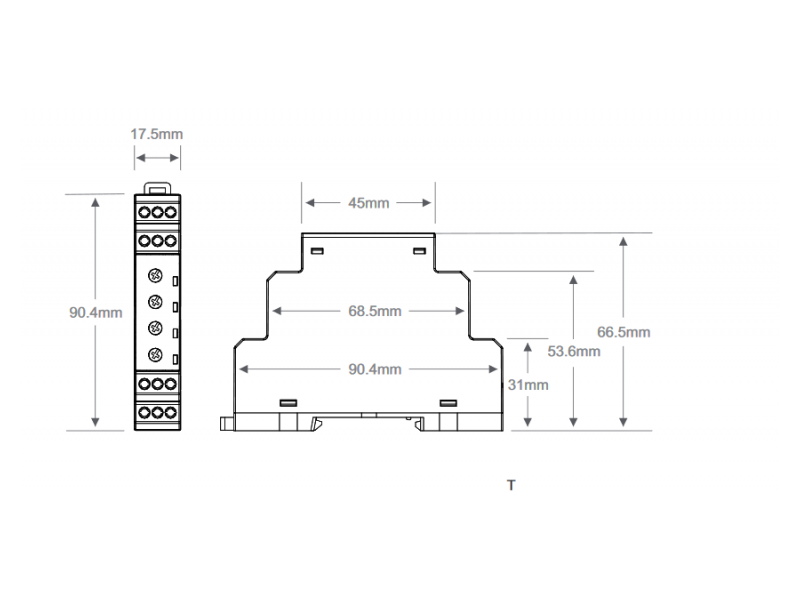

| Dimensions | --- | ||
| Auxilary Contacts | Type | 1 C/O (SPDT) | |
| Max. Ratings - AC (for NO side) | 5A/250V; 1250 VA | ||
| Max. Ratings - DC (for NO side) | 5A/30VDC; 150W | ||
| Mechanical Lifetime | ≥ 107 operations | ||
| Electrical Lifetime Operations (for NO side) | 5×104(5A@250VAC) 1×105(5A@30VDC) | ||
| Time Range | Timing-1 | 1s =>60s | |
| Timing-2 | --- | ||
| Supply Voltage | DC | 24-300 VDC | |
| AC | 24-300 VAC | ||
| Ambient Conditions | Operating Temperature | -20 to +60 °C | |
| Storing Temperature | -40 to +75 °C | ||
| Relative Humidity (No Condensation) | Max.95% (no condensation) | ||
| Power Consumption | DC | <2W | |
| AC | <3,5VA | ||
| EMC-EMI | 55011/A1, 61000-4-2, 61000-4-3/A1, 61000-4-4, 61000-4-5, 61000-4-6, 61000-4-8, 61000-4-11 | ✔ | |
| Accessories | Liquid Level Electrode | Definition | 2C/O On delay timer |
| Order Number | --- | ||
| Packing Units | 1 | ||
-

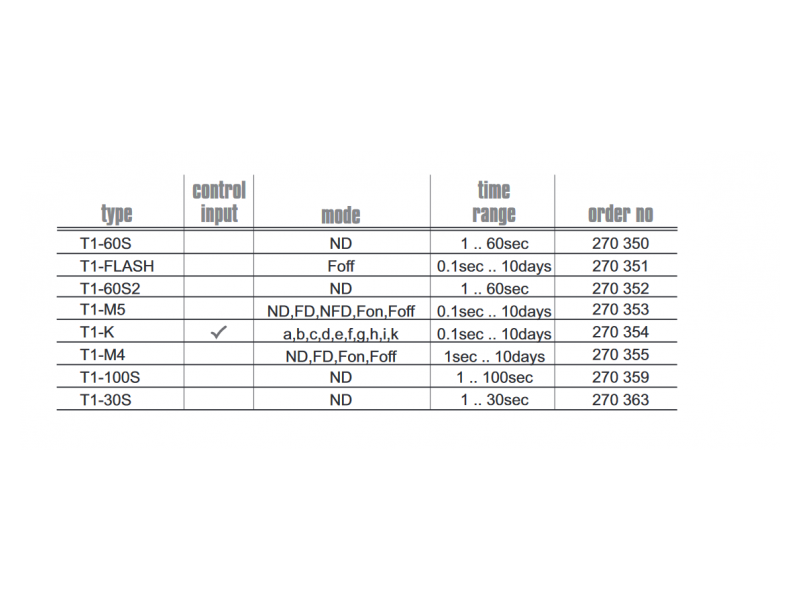

T SERIES M5 60S 100S M4 K FLASH 30S EN 08032017
