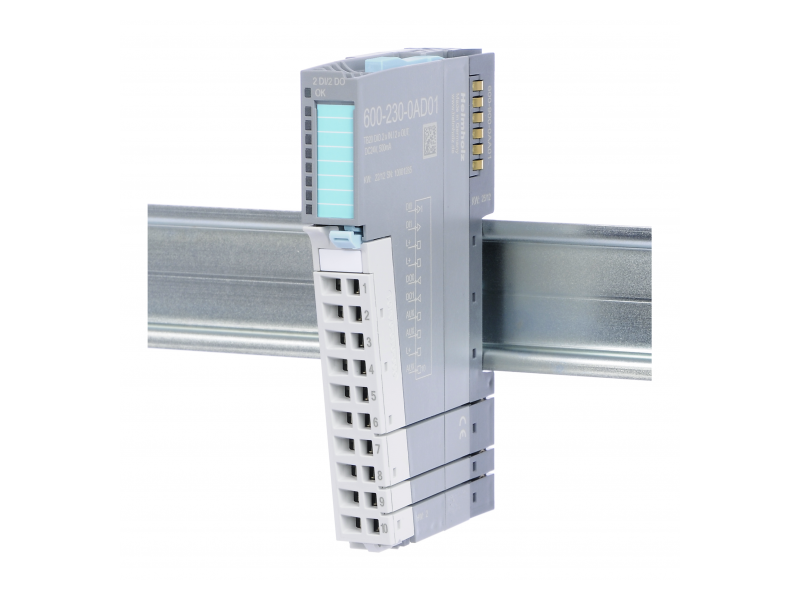

Helmholz Digital-mix-modul – DIO 2 x In/2 x Out DC 24 V, 500 mA
24 V DC input voltage Can accommodate 2-wire proximity sensors 24 V DC output voltage 500 mA output current per channel A blue LED indicates the module's operating...
VAT-exclusive price: 4.914,22 |
VAT-inclusive price: 5.897,06 |
- 24 V DC input voltage
- Can accommodate 2-wire proximity sensors
- 24 V DC output voltage
- 500 mA output current per channel
- A blue LED indicates the module's operating status
- Green LEDs (one for each output) indicate the output status
- 2 inputs, electrically isolated from the backplane bus
- 2 outputs, electrically isolated from the backplane bus
| General information | ||
|---|---|---|
| Order number | 600-230-0AD01 | |
| Article name | DIO 2x In/2x Out DC 24 V, 500 mA | |
| Scope of delivery | DIO 2x In/2x Out DC 24 V, 500 mA | |
| Dimensions (DxWxH) | 110 x 14 x 73 mm | |
| Weight | Approx. 70 g | |
| Number of inputs | 2 | |
| Input characteristic curve | Type 2, EN 61131-2 | |
| Reverse polarity protection for inputs | Yes | |
| Input voltage | ||
| For signal "0” | - 3 V … 9 V | |
| For signal "1” | 12 V … 30 V | |
| Number of outputs | 2 | |
| Electrical isolation | ||
| from the backplane bus | Yes | |
| Between the channels | No | |
| Supply voltage UP, US | ||
| Rated value | 24 V DC | |
| Ripple USS | max. 3.6 V | |
| Permissible range (with ripple) | 20 … 30 V | |
| Voltage for t < 10 ms | 50 V | |
| Output current | ||
| Rated value | 500 mA | |
| Leakage current | Max. 0.5 mA | |
| Output short-circuit protection | Electronic, for each individual channel | |
| Inductive cutoff voltage limit | -48 V | |
| Current draw | ||
| External | Max. 10 mA + load | |
| Internal | Max. 25 mA | |
| Hot-swap capable | Yes | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP 20 | |
| Certifications | CE, UL | |
| UL | ||
| Surrounding Air Temperature | 0 °C … +60°C | |
| Pollution degree | 2 | |
| CE | ||
| Noise immunity | DIN EN 61000-6-2 “EMC Immunity” | |
| Interference emission | DIN EN 61000-6-4 “EMC Emission” | |
| Vibration and shock resistance | DIN EN 60068-2-8:2008 “Vibration”, DIN EN 60068-27:2010 “Shock“ | |
| RoHS | Yes | |
| REACH | Yes | |
