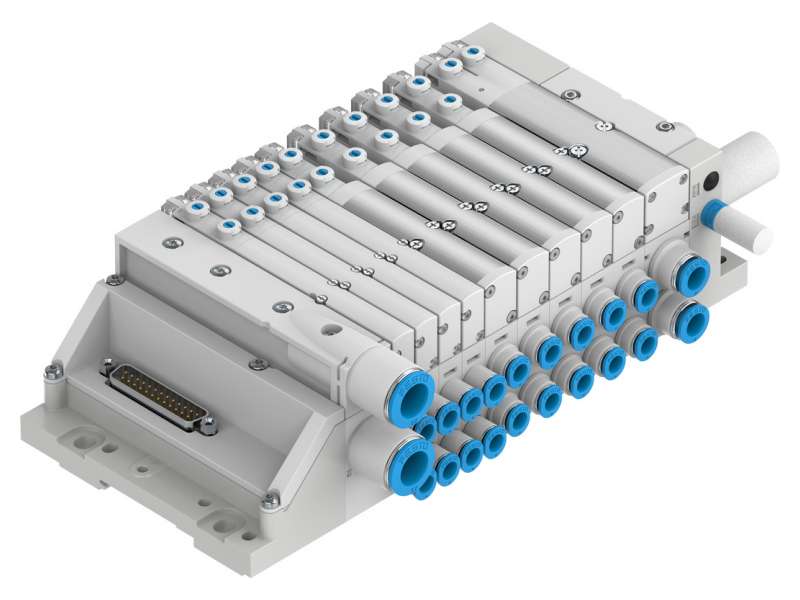

Festo Valve manifold MPAL-VI ; 569926
Valve manifold with sub-base in polymer technology. Maximum modularity Single granular Polymer sub-bases 3 pneumatic valve sizes Tamper-proof fixed flow restrictor...
Price on request
Valve manifold with sub-base in polymer technology.
- Maximum modularity
- Single granular
- Polymer sub-bases
- 3 pneumatic valve sizes
- Tamper-proof fixed flow restrictor
- Fieldbus connection via CPX
- IO-Link® capable
- Valve function
-
5/3, closed
2x3/2, closed, monostable
5/2, bistable
5/3, pressurized
5/2, monostable
3/2, open, monostable
3/2, closed, monostable
2/2, closed, monostable
5/3, exhausted
2x3/2, open, monostable
2x3/2, open/closed, monostable - KC characters
- KC EMC
- Valve size
-
14 mm
20 mm
10 mm - Max. standard nominal flow rate
-
870 l/min at 20 mm
670 l/min at 14 mm
360 l/min at 10 mm - Pneumatic working port
-
QS-1/2
QS-5/32
QS-6
QS-8
QS-5/16
QS-3
QS-1/8
QS-3/16
QS-4
QS-3/8
M7
QS-10
G1/4
QS-12
QS-1/4 - Operating pressure
- -0.9 bar ... 10 bar
- Electrical actuation
-
Multi-pin
I-Port
Fieldbus
IO-Link® - Max. no. of valve positions
- 32
- Max. no. of pressure zones
- 20
- Electrical I/O system
- yes
- Ambient temperature
- -5 °C ... 50 °C
- Degree of protection
-
IP67
IP65 - Certification
-
RCM compliance mark
c UL us - Listed (OL) - Type code
- MPAL-VI
- Actuation type
- Electrical
- Valve terminal type
- 34
- Design
-
Poppet valve with return spring
Piston gate valve - Type of control
- Electrical
- Pilot air supply port
-
External
Internal - Valve manifold design
- Valve sizes can be mixed
- Switching position indication
- LED
- Signal status display
- LED
- Suitability for vacuum
- yes
- Nominal operating voltage DC
- 24 V
- Permissible voltage fluctuations
- +/- 25 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- Storage temperature
- -20 °C ... 40 °C
- Temperature of medium
- -5 °C ... 50 °C
- Note on materials
- RoHS-compliant
-
569926datasheet
